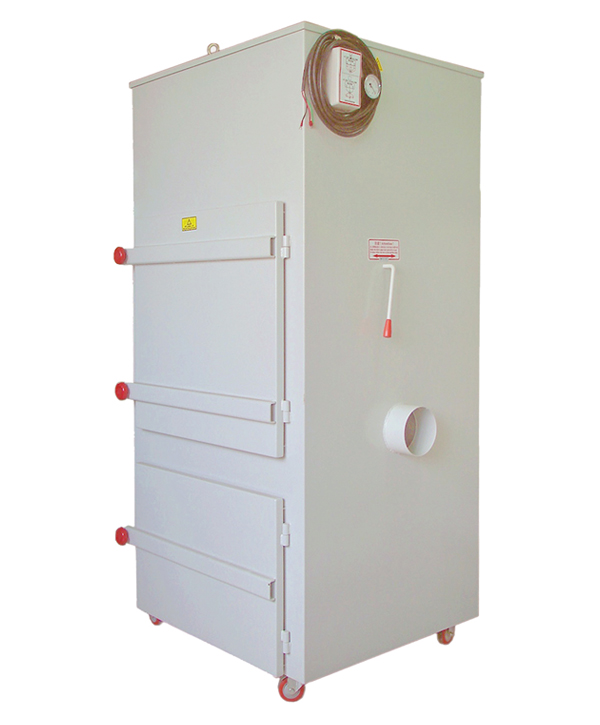

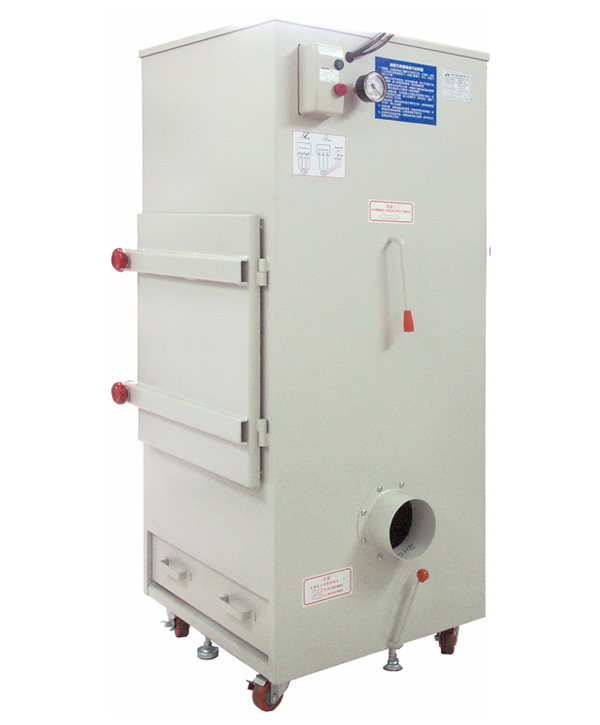

EV-710Lower Dust Collection
Specification
| Model | EV-710 | EV-710 |
| Induction motor | 3HP | 5HP |
| Entrance airflow | 28m³/min | 35m³/min |
| Entrance air speed | 26m/sec | 28m/sec |
| Entrance air pressure | 300mmAg | 380mmAg |
| Entrance caliber | 150mm | 150mm |
| Exhaust caliber | 200mm | 200mm |
| Non-woven | 12.1cc/cm².Sec | 12.1cc/cm².Sec |
| Noise | 73dB±2 | 76dB±2 |
| Power supply AC 220(380)V | 3φ.60/50Hz | 3φ.60/50Hz |
| Output | 2.25KW | 3.75KW |
| Dimension | 635×665×1710 mm | 805×910×2040 mm |
| Weight | 196Kg | 295Kg |
Different sizes according to the size of the dust
| Dust size | Dust Collection Ability |
| 0.5 μ | 80% |
| 1.0 μ | 90% |
| 2.0 μ | 95% |
| 3.0 μ以上 | 100% |
- 3HP(5HP) high efficiency motor
- 100% Polyester & 1.9㎜ thickness high-density fabric filter tube plus specially made high-efficiency vane which produces strong suction thatcan efficiently filtrate dust particle.
- 16PCS 120*640mm(5HP：29PCS 120*790mm)filter tube collect PCB dust efficiently.
