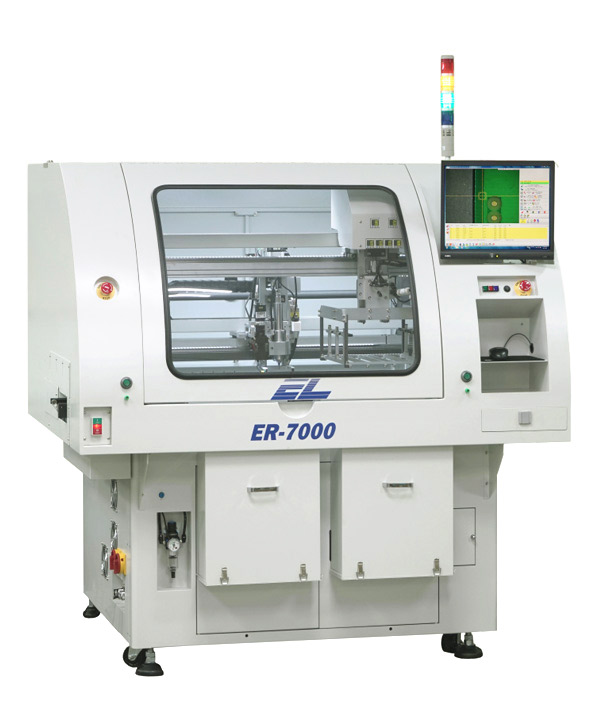

ER-7000 AT
IN LINE PCB Separator Cut Machine
Specification
- Sliding table positioning mode: Servo precise positioning double sliding table
- Pick-and-place method: single-head pick-and-place mechanism
- Cover mode: magnet buckle platen mechanism
- Maximum working range of upper dust collection(W*D)900x720mm
- Maximum working range of lower dust collection(W*D)900x740mm
- Working height:920mm±20mm
- Cutting speed:1~100 mm/s
- Mechanical repeatability:± 0.01 mm
- Control System:PC-based 6 Axis controller
- Drive way:AC Servo motor
- working system:IPC Windows 10
- Cutting accuracy:± 0.05 mm
- Spindle speed:Max. 60000 rpm
- Host voltage:1φ, AC 220V 50/60Hz
- Air supply:4~6 kg/cm², flow:1500 L/hr
- Power consumption:3.0 KVA
- Dust collection method: built-in type,lower exhaust type 3HP, see Blower
- Front station conveyor belt height: 920 ± 20 mm
- Rear station conveying mode: belt type, rail type, carrier type,ES-602 can be selected according to customer needs
- Flow direction: left to right, right to left
- Static elimination:Static elimination gun (lower exhaust type)

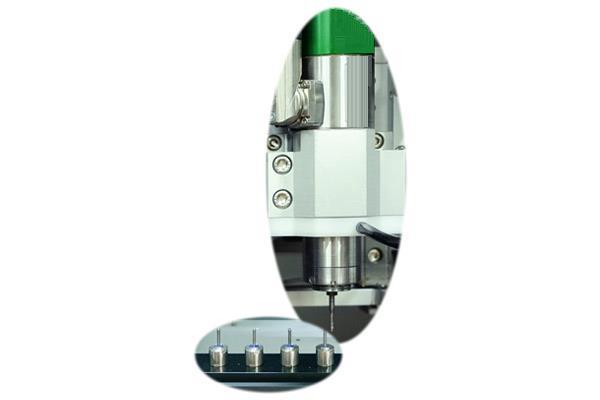

- Equipped with automatic replacement of milling cutter function.

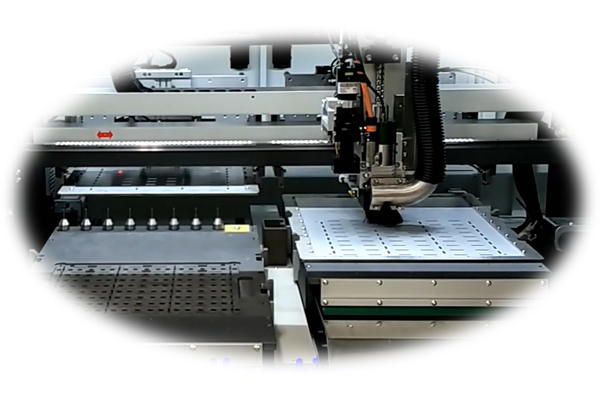

- Modular vacuum suction cup set, which can be made offline.
- The board release method: belt type, rail type, and load table, can be selected according to customer needs.
- Integrated design of the cutting main unit and the dust collection reduces the size and increases the flexibility of the production line layout.
- Suction port is kept aligned with the cutting point of the milling cutter, significantly increasing the dust collection effect.
- Disposable dust bag is used to prevent secondary dust pollution, which is environmentally friendly and simplifies the maintenance of the dust collection.
- The dust collection is equipped with a second filter paper net to effectively protect the motor and prevent dust leakage.
- The dust collection is equipped with automatic dust detection function to ensure the dust collection effect.
- It is equipped with a high-precision CCD vision automatic alignment correction system, which improves cutting precision and work efficiency.
- The machine is equipped with a vacuum cleaner function to facilitate the cleaning and maintenance of the machine.
Type | Workbench | Up suction working range (W*D) |
Down suction working range (W*D) |
Customer fixture restrictions (W*D) |
ATDS | 2 Table | 250*320mm | 250*340mm | 294x350mm |
ATDW | 2 Table | 330*320mm | 330*340mm | 370x350mm |
ATDWL | 2 Table | 330*620mm | 330*640mm | 370x650mm |
ATDM | 2 Table | 400*420mm | 400*420mm | 440x450mm |
ATDX | 2 Table | 500*470mm | 500*490mm | 540x500mm |
ATDXL | 2 Table | 500*620mm | 500*640mm | 540x650mm |
ATDXXL | 2 Table | 600*620mm | 600*640mm | 650x650mm |
ATD65L | 2 Table | 650*620mm | 650*640mm | 700x650mm |
ATS70L | 1 Table | 700x720mm | 700x740mm | 750x750mm |
ATS80L | 1 Table | 800x720mm | 800x740mm | 850x750mm |
ATS90L | 1 Table | 900x720mm | 900x740mm | 950x750mm |
Type | weight(Kg) | Machine size W*D*H | Picture file | |
ATDS | 980 | 2000*1340*1980mm | The scope of work | |
ATDW | 1070 | 2100*1340*1980mm | The scope of work | |
ATDWL | 1070 | 2100*1740*1980mm | The scope of work | |
ATDM | 1070 | 2450*1420*1980mm | The scope of work | |
ATDX | 1120 | 2950*1530*1980mm | The scope of work | |
ATDXL | 1300 | 2950*1740*1980mm | The scope of work | |
ATDXXL | 1450 | 3450*1740*1980mm | The scope of work | |
ATD65L | 1600 | 3700*1740*1980mm | The scope of work | |
ATS70L | 1145 | 3700*1740*1980mm | ||
ATS80L | 1295 | 3700*1740*1980mm | ||
ATS90L | 1445 | 3700*1740*1980mm |
