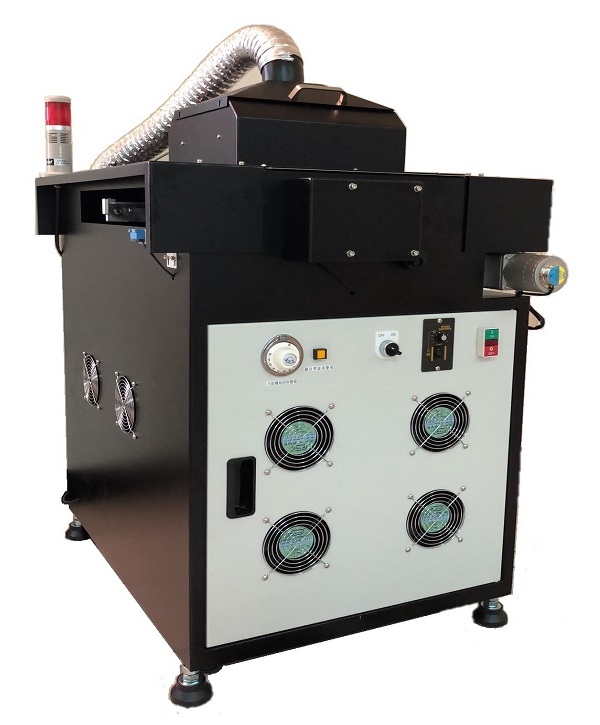

UV-703
UV curing machine：UV lamp
Click to enlarge
Specification
Lamp：Mercury Lamp、400W x 4
Cooling：Air-coolded ventilation system
Conveyor Speed：5mm/sec → 40mm/sec
Safety Device：Current overload circuit breaker, leakage prevent
Host voltage：1
φ
, AC 220V 50/60Hz2.3KVA
Power consumption：2.3 KVA
Conveyor Length：650mm
Lamp Voltage：220V
Lamp Life：Continuous lighting above 4 hours, Cycle life 800 hours
Dimension(W x D x H)：700 x 950 x 1330mm
Weight：200KG
Feature
Feature
The UV-703 oven connects with online Dispenser EM-5701N(EM-5500)
EM-5701N (EM-5500)+ UV conveyor length about 2000mm
Detail dispenser spec. refers to catalog
