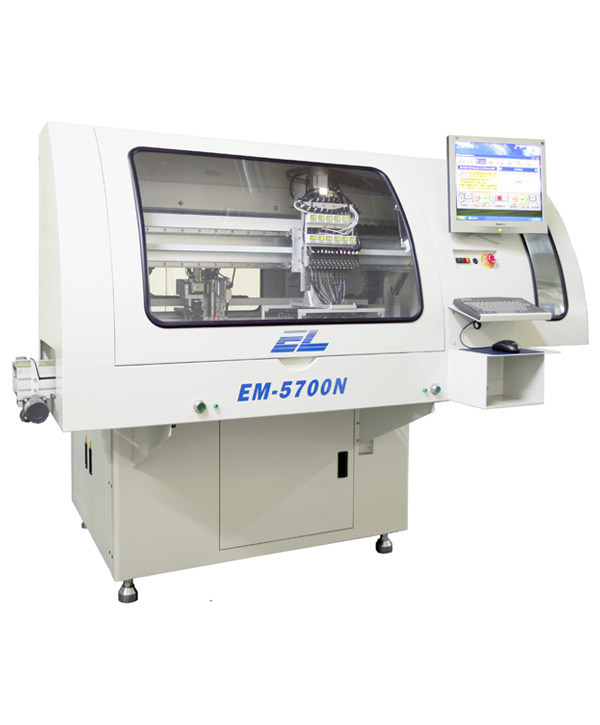

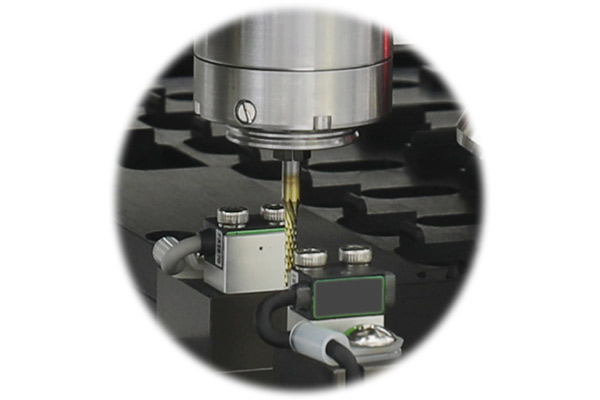

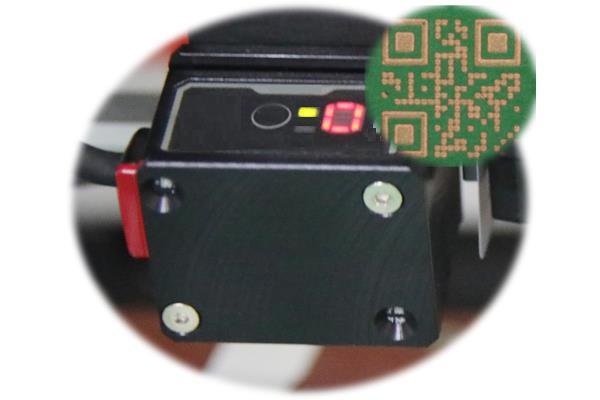

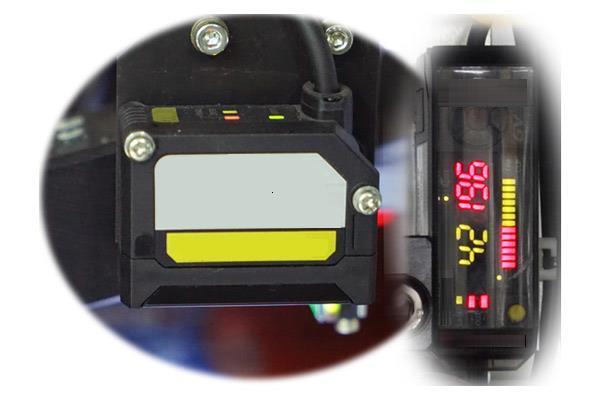

EM-5700N AT
IN LINE PCB Separator Cut Machine

Specification

  • Sliding table positioning mode:Cylinder positioning double sliding table
  • Pick-and-place method: single-head pick-and-place mechanism
  • Maximum working range on one side(W*D):600*620 mm
  • Working height:920mm±20mm
  • Cutting speed:1~100 mm/s
  • Mechanical repeatability:± 0.01 mm
  • Control System:PC-based 6 Axis controller
  • Drive way:AC Servo motor
  • working system:IPC Windows 10
  • Cutting accuracy:± 0.1 mm
  • Spindle speed:Max. 60000 rpm
  • Host voltage:1φ, AC 220V 50/60Hz
  • Air supply:4~6 kg/cm², flow:1500 L/hr
  • Power consumption:3.0 KVA

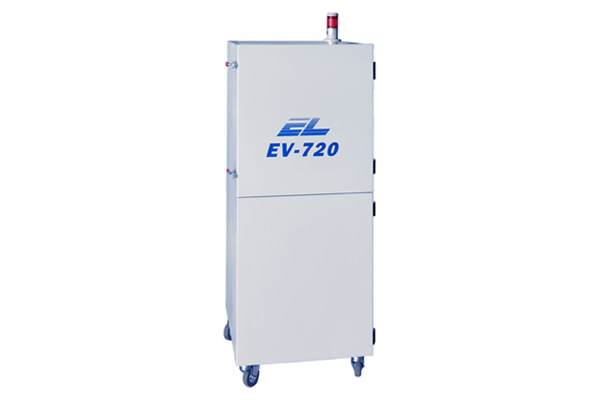

  • Dust collection method:External type,upper exhaust type 3HP,See Catalog EV-720
  • Dust collection method:External type,lower exhaust type 3HP,See Catalog 3(5)HP
  • Front station conveyor belt height: 920 ± 20 mm
  • Flow direction: left to right, right to left
  • Rear station conveying mode:Belt transportation
  • Static elimination:Static elimination gun (lower exhaust type)

Control System

Six axes Controller,WINDOWS System

PCB Transport Mechanism

lateral movement/up/down to be AC servo motor control

P&P Device

Auto loading and unloading(Modular vaccum nozzle, indepent vaccum sensor)

P&P Speed

Max 500 mm/sec

Conveyor Width

Min 80mm Max 300mm

※Elite has the right to chagne specifications
Type Workbench The scope of work(W*D)mm Machine size W*D*H weight(Kg) Picture file
AT 2 Table
  • Manual TOOL bit change 320*320mm
  • Auto TOOL bit change 320*305mm
  • 2000*1720*1750mm 820 The scope of work
    ATDXX 1 Table
  • Manual TOOL bit change 600*620mm
  • Auto TOOL bit change 600*605mm
  • 2490*2240*1800mm 1030 The scope of work
