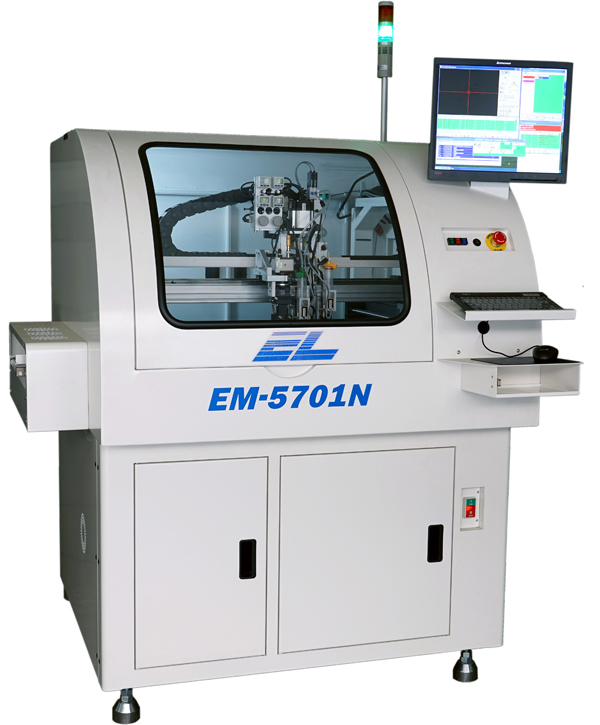

EM-5701N IN LINE Dispensing Machine

Specification

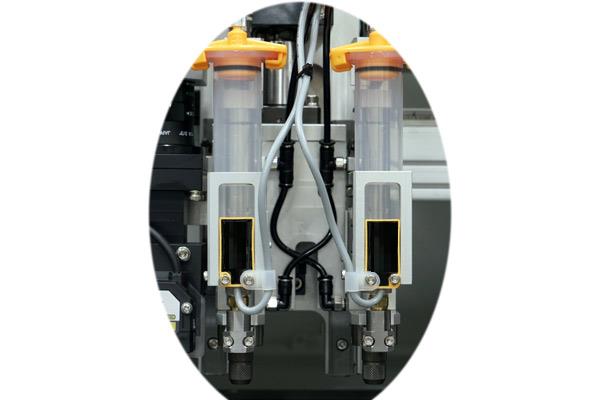

  • Spot glue method: double valve spot glue
  • Maximum working range on one side (W * D): Max.500 × 400 (380) mm
  • Working height: 900mm ± 20mm
  • Dispensing speed: Max.14400 DPH
  • Mechanical repeat accuracy: ± 0.01 mm
  • Control system: PC-based 3-axis controller
  • Drive method: AC servo motor
  • Operating system: IPC Windows 10
  • Dispensing accuracy: ± 0.05 mm
  • Host voltage:1φ, AC 220V 50/60Hz
  • Air supply:4~6 kg/cm², flow:1500 L/hr
  • Power consumption:2.2 KVA
  • Front station conveyor belt height: 920 ± 20 mm
  • Flow direction: left to right, right to left

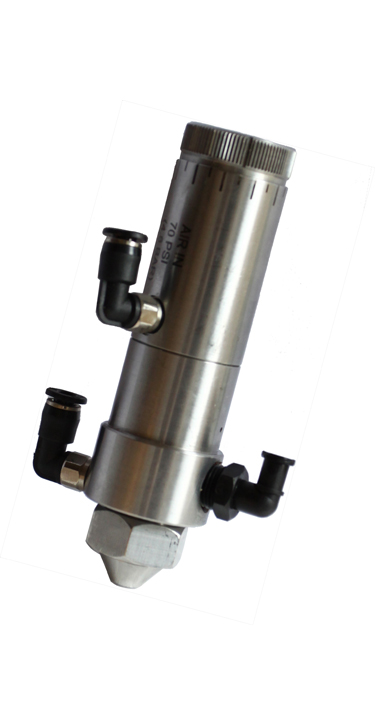

※Please Contact us for other types of valves

Type Workbench Working range (W * D) mm Host size W * D * H Weight
(Kg)
Picture file
5701N 1 Table
  • Single valve 500×400mm
  • Single valve +
    large package 450×400mm
  • Single valve + large package +
    Barcode machine 450×360mm
  • 1420x1300x1840mm 800 The scope of work
  • Double valve 450×380mm
  • Double valve +
    large package 400×380mm
  • Double valve + large package +
    Bar code machine 400×360mm
  • Smallest 40×40mm

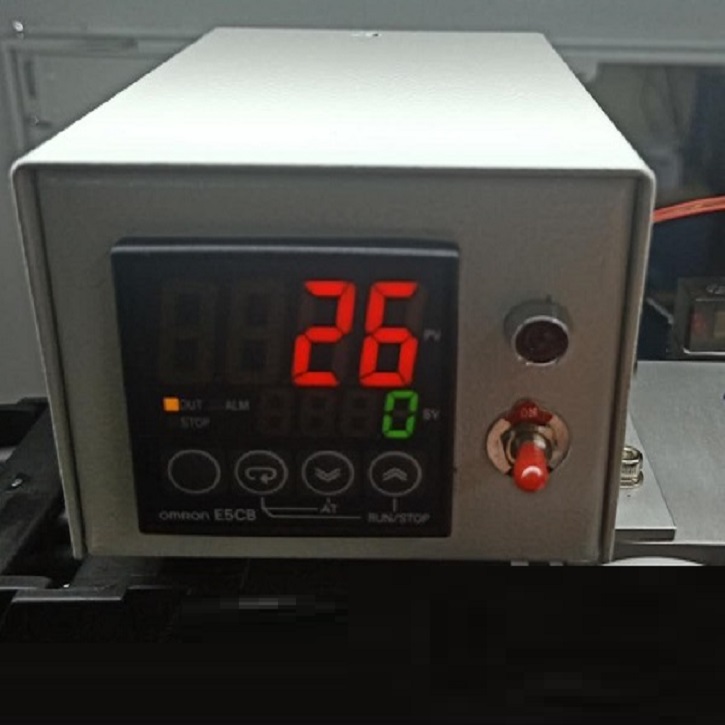

  • Min + warm-up 100×80mm
  • 5701N-M 1 Table
  • Single valve 500×500mm
  • Single valve +
    large package 450×500mm
  • Double valve 500×480mm
  • Double valve +
    large package 450×480mm
  •
