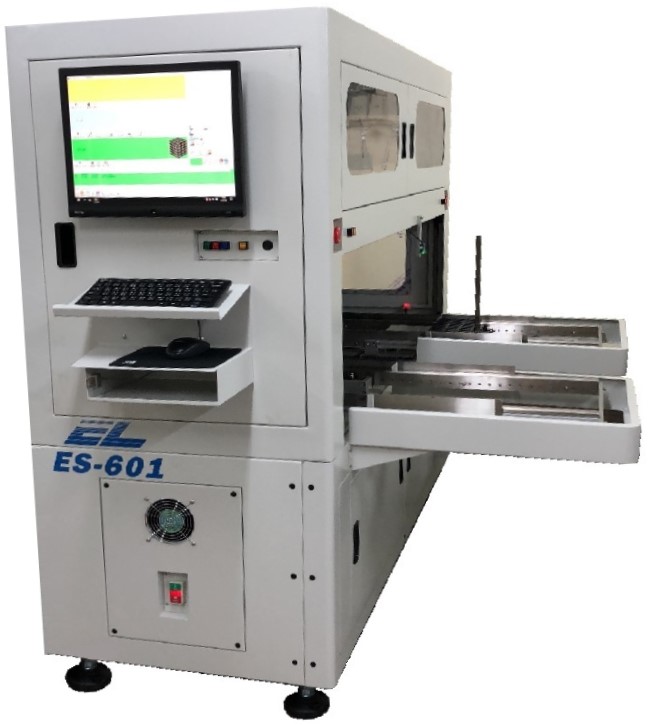

ES-601 Auto Tray collection machine
Specification
- Front station positioning mode: Cylinder positioning
- Rear station positioning mode: Cylinder positioning
- Pick-and-place method: single-head pick-and-place mechanism
- Working height：920mm±20mm
- Mechanical repeatability：± 0.01 mm
- Control System：PC-based 2 Axis controller
- Drive way：AC Servo motor
- working system：IPC Windows 10
- Host voltage：1φ, AC 220V 50/60Hz
- Air supply：4~6 kg/cm², flow:1500 L/hr
- Power consumption：1.8 KVA
- Front station positioning mode: Cylinder positioning
- Rear station positioning mode: Cylinder positioning
- Flow direction: left to right, right to left
- Tray(W*D)：450*400 mm
Pick and place device
Single-head pick and place mechanism (single-head feed, single-head discharge)
Pick and place device
Automatic loading and unloading (modular vacuum suction claw, vacuum detection device)
Transportation mechanism
Traverse and up / down axis, AC servo motor control
Pick and place speed
Max.500mm / sec
Inboard track width
Min. 80 mm

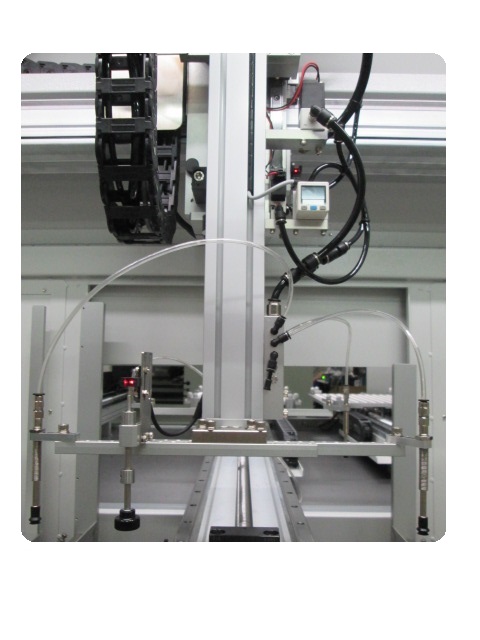

- The X and Z axes use a gantry structure to improve repeat accuracy and speed.
- Integrated outer cover design, the door is equipped with safety facilities and meets public safety requirements.
| Type | Workbench | The scope of work(W*D)mm | Machine size W*D*H | weight(Kg) | Picture file |
| ES-601 | 3 Table | 450*400mm | 1282*1825*1670mm | 720 | The scope of work |
