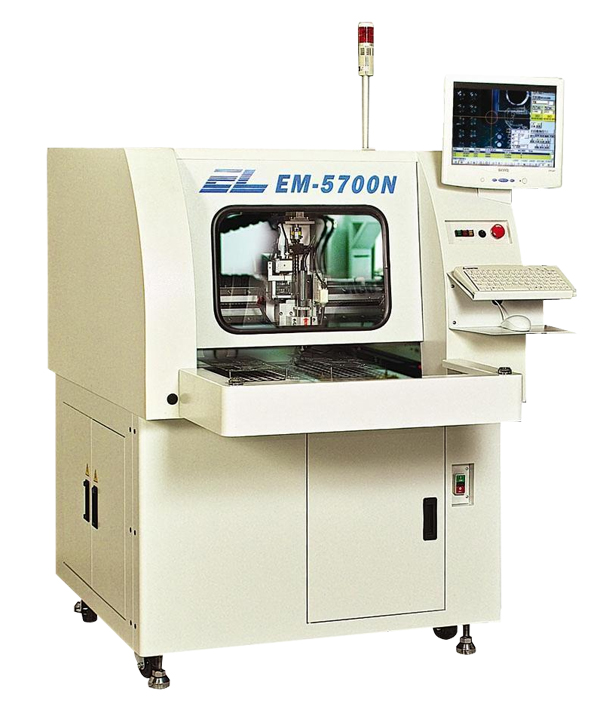

EM-5700N
OFF LINE PCB Separator Cut Machine
Specification
- Sliding table positioning mode：Cylinder positioning double sliding table
- Maximum working range on one side(W*D)：600*620 mm
- Working height：920mm±20mm
- Cutting speed：1~100 mm/s
- Mechanical repeatability：± 0.01 mm
- Control System：PC-based 3 Axis controller
- Drive way：AC Servo motor
- working system：IPC Windows 10
- Cutting accuracy：± 0.1 mm
- Spindle speed：Max. 60000 rpm
- Host voltage：1φ, AC 220V 50/60Hz
- Air supply：4~6 kg/cm², flow:1500 L/hr
- Power consumption：1.8 KVA
- Dust collection method：External type,upper exhaust type 3HP,See Catalog EV-720
- Dust collection method：External type,lower exhaust type 3HP,See Catalog 3(5)HP
- Static elimination：Static elimination gun (lower exhaust type)
- The double fixture can be converted into a large single fixture to increase the working range.
- It can be equipped with automatic tool change spindle + automatic tool change machine slot, reducing the number of personnel to replace the spindle milling cutter.
| Type | Workbench | Universal fixture working range(W*D) | Special fixture working range(W*D) | Working range of double-modified large single universal fixture(W*D) | Working range of double-to-large single-use special fixture(W*D) | Customer fixture restrictions (W*D) |
| SW | 1 Table | 500×450mm | 500×450mm | |||
| DS | 2 Table | 295*350mm | 245*320mm | 595*350mm | 545*320mm | 295*350mm |
| DL | 2 Table | 295*450mm | 245*420mm | 595*450mm | 545*420mm | 295*450mm |
| DW | 2 Table | 370*450mm | 320*420mm | 745*450mm | 695*420mm | 370*450mm |
| DM | 2 Table | 370*550mm | 320*520mm | 745*550mm | 695*520mm | 370*550mm |
| DML | 2 Table | 370*650mm | 320*620mm | 745*650mm | 695*620mm | 370*650mm |
| DX | 2 Table | 520*450mm | 470*420mm | 1045*450mm | 995*420mm | 520*450mm |
| DXL | 2 Table | 520*550mm | 470*520mm | 1045*550mm | 995*520mm | 520*550mm |
| DXM | 2 Table | 520*650mm | 470*620mm | 1045*650mm | 995*620mm | 520*650mm |
| DXX | 2 Table | 650*650mm | 600*620mm | 1305*650mm | 1255*620mm | 650*650mm |
| Type | weight(Kg) | Machine size W*D*H | Picture file |
| SW | 590 | 1200×1150×1450mm | |
| DS | 580 | 1240*1465*1800mm | The scope of work |
| DL | 580 | 1240*1465*1800mm | The scope of work |
| DW | 630 | 1390*1465*1850mm | The scope of work |
| DM | 680 | 1390*1665*1800mm | The scope of work |
| DML | 740 | 1390*1920*1800mm | The scope of work |
| DX | 730 | 1690*1465*1800mm | The scope of work |
| DXL | 760 | 1690*1665*1800mm | The scope of work |
| DXM | 820 | 1690*1920*1800mm | The scope of work |
| DXX | 910 | 1840*1920*1800mm | The scope of work |
